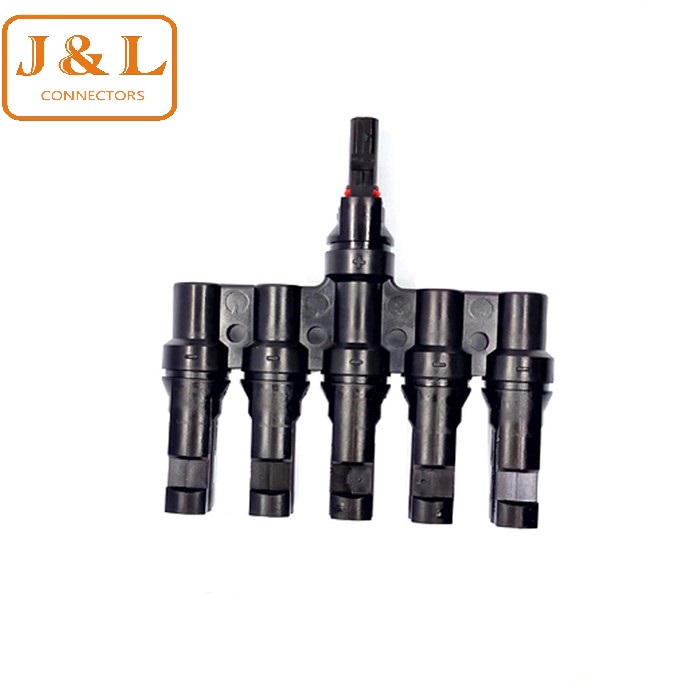

T Branch 5 in 1 Male and Female Waterproof IP67 Solar Photovoltaic PV connector

Consulting price

Parameter introduction：

1. Current: 30A-65A

2. Voltage: 1000V DC/1500V DC

3. Contact Resistance: 0.2mm Ω

4. Waterproof Grade: IP67, IP68

5. Operating Temperature: -40℃±, 125℃

6. Applicable Line Model: 2.50mm², 4.0mm², 6.0mm², 10.0mm²

7. Pull out Force: 50N

8. Insertion Force: 50N

Material Quality:

1. Contact Material: Copper Alloy

2. Electroplating Method: Tin plating

3. Insulation Material: UL94V-0 glass fiber reinforced thermoplastic plastic

All products meet ROHS 2.0, REACH, TUV certification, export quality requirements

13 years experience connector manufacturer, covers board to board connector, wire to board connector, photovoltaic connector, new energy connector, automotive connector, wire harness, finished wire and cables, plastic and hardware mold production.

We can provide 150 kinds of photovoltaic connectors and related accessories products, which have been exported to customers all over the world, especially customers in Europe.

Our company has a strong research and development strength, 13 years of mold engineering research and development department, welcome new and old customers to consult----- DongGuan J&L Electronic technology Co.,LTD .
