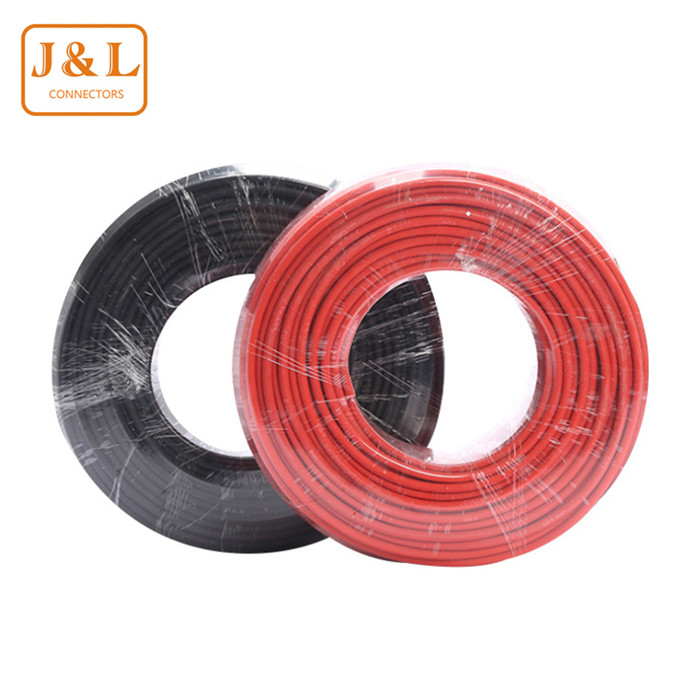

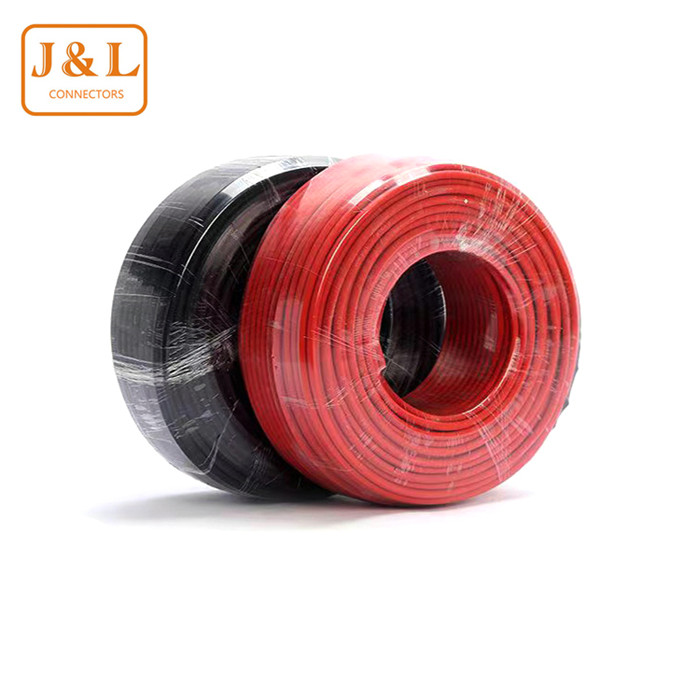

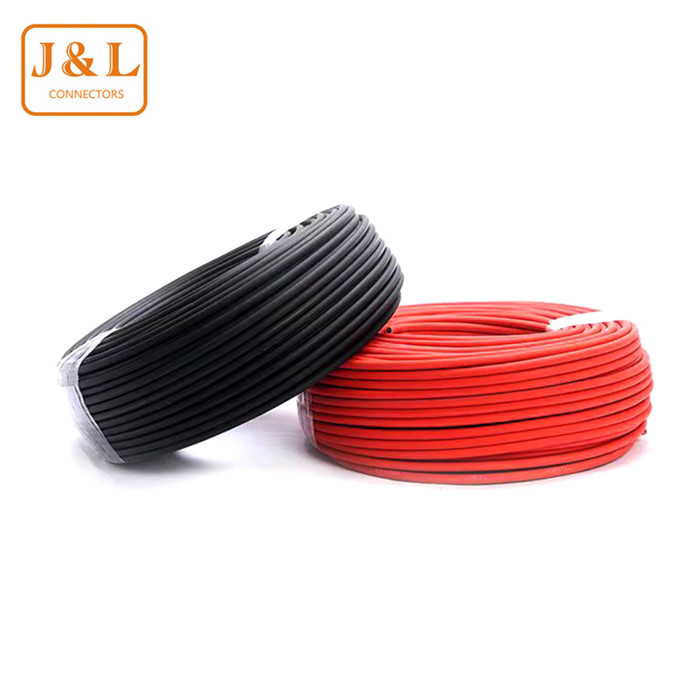

2.5mm²/4mm²/6mm²/10mm² PV1-F Tinned Copper Solar Panel PV Cable

Consulting price

Parameter introduction：

1. Connector: MC4 connector

2. Rated current: 30A

3. Rated voltage: DC: 1000V

4. Rated temperature: - 40~+85 ℃

5. Line length: 1m, 1.50m, 2.0m, 3.0m, 5.0m, 6m, 10m (customizable length)

6. Wire model: positive standard photovoltaic cable 2.50mm ² 4.0mm ² 6.0mm ² 10.0mm ²

Material Quality:

1. Production process: crimping assembly

2. Conductor material: oxygen free tinned copper wire

3. Product model: with double head MC4 harness

4. Cable insulation layer: 125 ℃ irradiation cross-linked low smoke

5. halogen-free flame retardant polyolefin (XLPO)

6. Cable sheath layer: 125 ℃ irradiation cross-linked low smoke halogen-free flame retardant polyolefin (XLPO)

7. Connector conductor material: red copper tinned contact pin

All products meet ROHS 2.0, REACH, UL certification, export quality requirements.

13 years experience connector manufacturer, covers board to board connector, wire to board connector, photovoltaic connector, new energy connector, automotive connector, wire harness, finished wire and cables, plastic and hardware mold production.

We can provide 150 kinds of photovoltaic connectors and related accessories products, which have been exported to customers all over the world, especially customers in Europe.

Our company has a strong research and development strength, 13 years of mold engineering research and development department, welcome new and old customers to consult----- DongGuan J&L Electronic technology Co.,LTD .
